| Products >> Joloda Bearing Wheel & Pulley >> HB series steel house bearing |
 |
| |
| Name：Housed bearing |
| Model：HB546 - HB718 series |
|
Information：
Unground core bearing + steel housing structure,
zinc plated, for swaged conveyor roller. |
|
 |

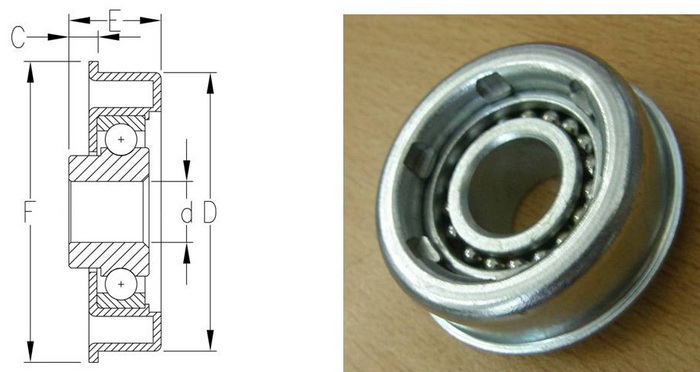

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | 1 | HB546-1200 | 54.6 | 12.1 | 59.6 | 17.5 | 6.8 | 15 | 4.76 | 91 | A5908-R3 | 1 | HB546-1300 | 54.6 | 13.1 | 59.6 | 17.5 | 6.8 | 15 | 4.76 | 91 | A5908-R3 | 1 | HB546-1500 | 54.6 | 15.1 | 59.6 | 17.5 | 6.8 | 15 | 4.76 | 91 | A5908-R3 | 1 | HB560-1200 | 56.0 | 12.2 | 58.6 | 17.7 | 6.5 | 15 | 4.76 | 84 | A1889-R0 | 1 | HB560-1500 | 56.0 | 15.2 | 58.6 | 17.7 | 6.5 | 15 | 4.76 | 84 | A1889-R0 | 2 | HB560-2000 | 56.0 | 20.0 | 59.0 | 16.7 | 7.6 | 15 | 5.56 | 205 | A1941-R0 | 1 | HB560-1210 | 56.0 | 12.1 | 60.0 | 17.2 | 6.0 | 15 | 4.76 | 205 | A5914-R0 | 1 | HB560-1510 | 56.0 | 15.1 | 60.0 | 17.2 | 6.0 | 15 | 4.76 | 205 | A5866-R6 |

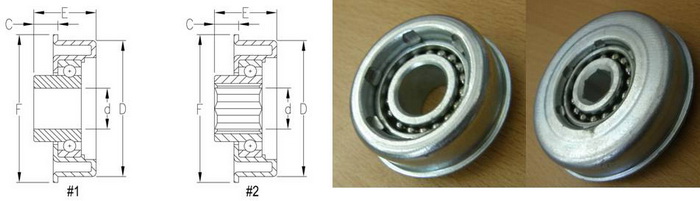

# | Part No.
品名 | Dimension尺寸(MM) | 钢珠 | Rating负载 | Remark
说明 | D | d | F | E | C | No. | Dia | kg | 1 | HB566-1200 | 56.6 | 12.1 | 59.6 | 17.5 | 6.3 | 15 | 4.76 | 205 | A5909-R3 | 1 | HB566-1500 | 56.6 | 15.1 | 59.6 | 17.5 | 6.3 | 15 | 4.76 | 205 | A5909-R3 | 2 | HB598-1100H | 59.8 | 11.3H | 63.0 | 17.5 | 6.8 | 15 | 4.76 | 84 | A5881-R1 |

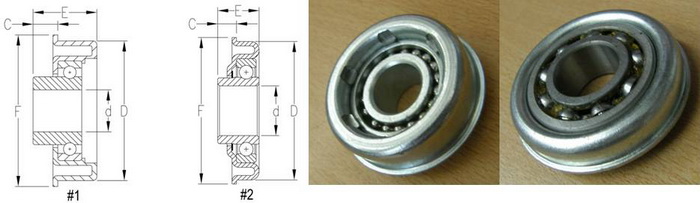

# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | | HB694-1000 | 69.4 | 10.1 | 76.0 | 27.0 | 7.0 | 13 | 7.94 | 132 | A5882-R2 | | HB694-1200 | 69.4 | 12.1 | 76.0 | 27.0 | 7.0 | 13 | 7.94 | 132 | A5882-R2 | | HB694-1500 | 69.4 | 15.1 | 76.0 | 27.0 | 7.0 | 13 | 7.94 | 132 | A5882-R2 | | HB694-1700 | 69.4 | 17.1 | 76.0 | 27.0 | 7.0 | 13 | 7.94 | 132 | A5882-R2 | | HB705-1000 | 70.5 | 10.1 | 75.0 | 23.0 | 8.0 | 14 | 7.94 | 132 | A5911-R0 | | HB705-1200 | 70.5 | 12.1 | 75.0 | 23.0 | 8.0 | 14 | 7.94 | 132 | A5911-R0 | | HB705-1500 | 70.5 | 15.1 | 75.0 | 23.0 | 8.0 | 14 | 7.94 | 132 | A5911-R0 | | HB705-1700 | 70.5 | 17.1 | 75.0 | 23.0 | 8.0 | 14 | 7.94 | 132 | A5911-R0 |
# | Part No. | Dimension(MM) | Bearing/Ball | Rating | Remark | D | d | F | E | C | No. | Dia | kg | | HB718-1000 | 71.8 | 10.1 | 75.0 | 23.0 | 6.9 | 14 | 7.94 | 132 | A5910-R0 | | HB718-1200 | 71.8 | 12.1 | 75.0 | 23.0 | 6.9 | 14 | 7.94 | 132 | A5910-R0 | | HB718-1500 | 71.8 | 15.1 | 75.0 | 23.0 | 6.9 | 14 | 7.94 | 132 | A5910-R0 | | HB718-1700 | 71.8 | 17.1 | 75.0 | 23.0 | 6.9 | 14 | 7.94 | 132 | A5910-R0 |
|
|
