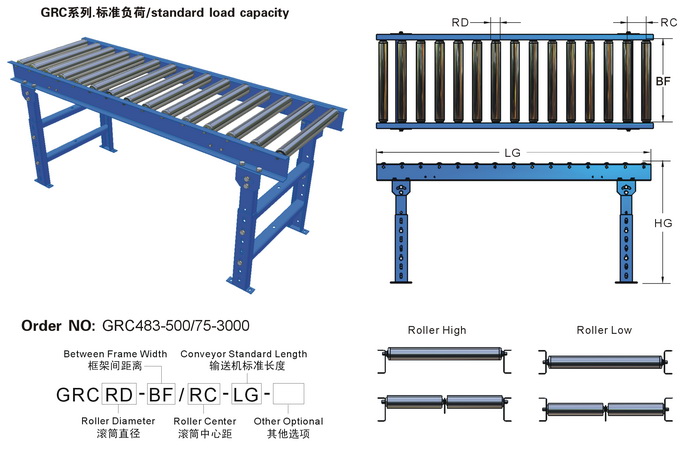

Model 型号	Roller/滚筒				RC	BF	LG

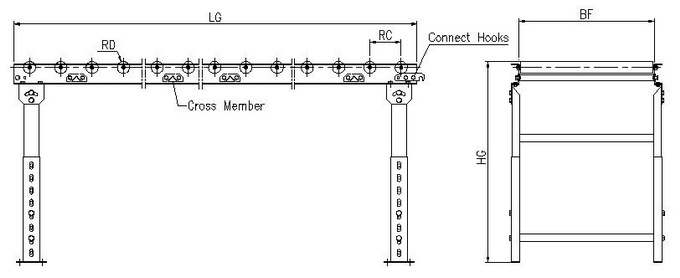

	RD	Wall 壁厚(mm)	Bearing 轴承	Capacity 承载(Kg)	滚筒中心距 Roller Center(mm)	Between Frame Width 框架间距离(mm)	Conveyor Length 输送机长度 (mm)
	Dia. 直径(mm)
GRC350	35	1.2	HM325	58	50	150,250,350	3000
GRC380	38	1.2	HB350	70	50	200,300,500
GRC400	40	1.2	FA381	100	75,100	300,500,750
GRC483	48.3	1.65	HM450	126	75,100	500,750,950
GRC500	50	1.5	HM475	150	75,100	500,750,950
GRC600	60	2	HB560	280	100,125	500,750,950
GRC635	63.5	3	FM577	315	100,125	750,1000,1250
GRC700	70	2.9	HP643	380	100,125	750,1000,1250
GRC760	76	6	SM576	450	100,125	750,1000,1250
GRC890	89	6	SM780	500	100,125	750,1000,1250

1) Standard

    Roller --- carbon steel, zinc plated, double spring

    Frame --- carbon steel, powder coated

 2) Optional

    Roller --- stainless, aluminum, PVC; galvanized, rubber coated

    Frame --- stainless, aluminum, galvanized

Customized model available

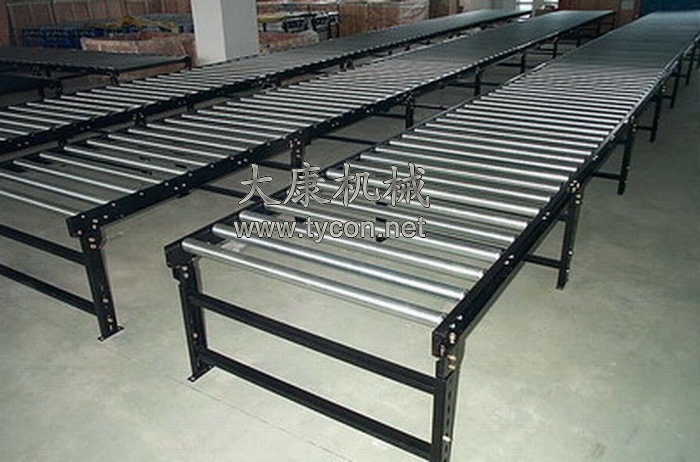

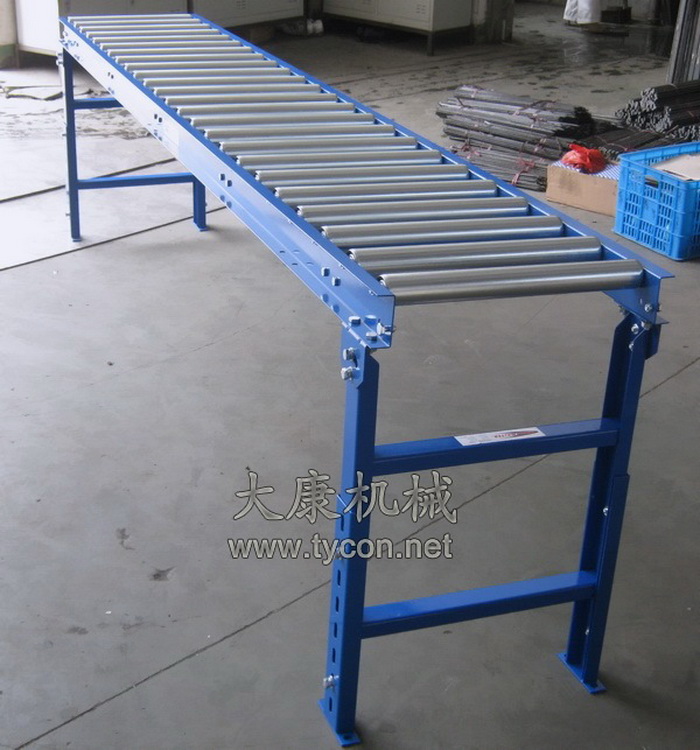

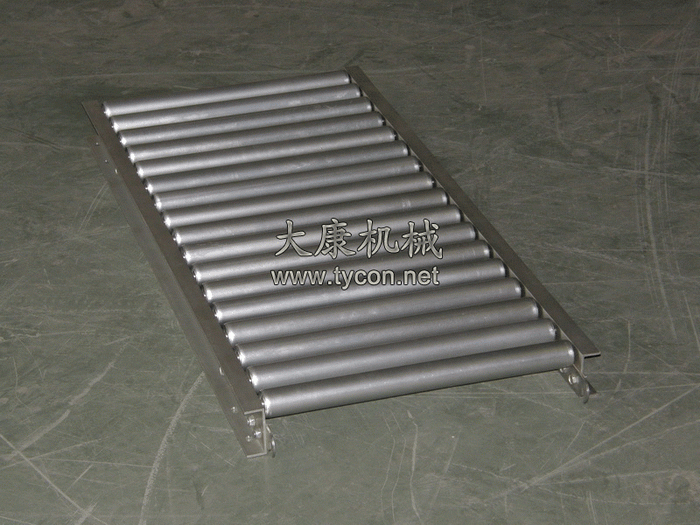

standard model

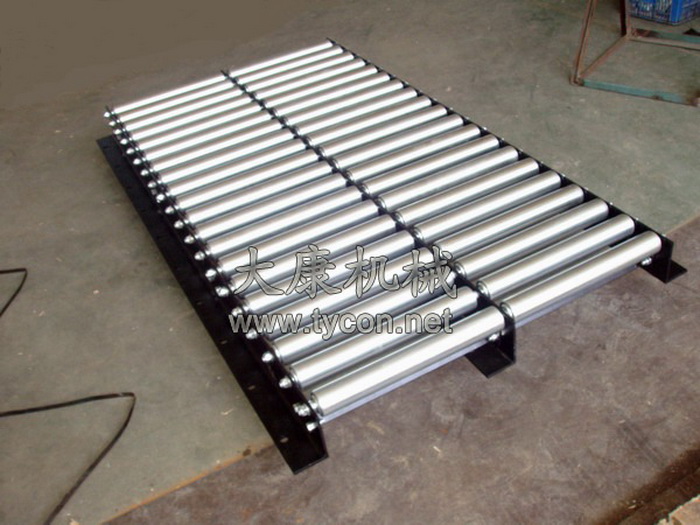

double rows model

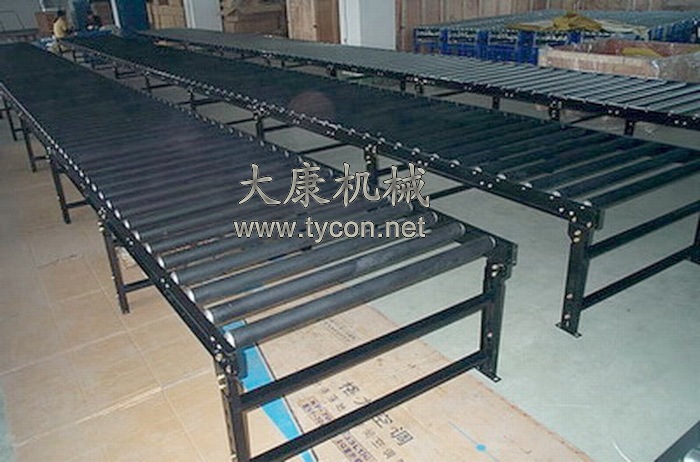

rubber coated roller model

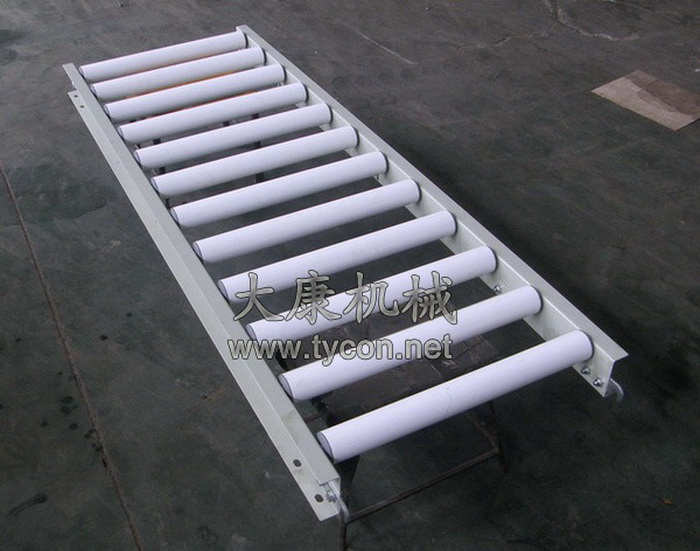

PVC roller model



aluminum model

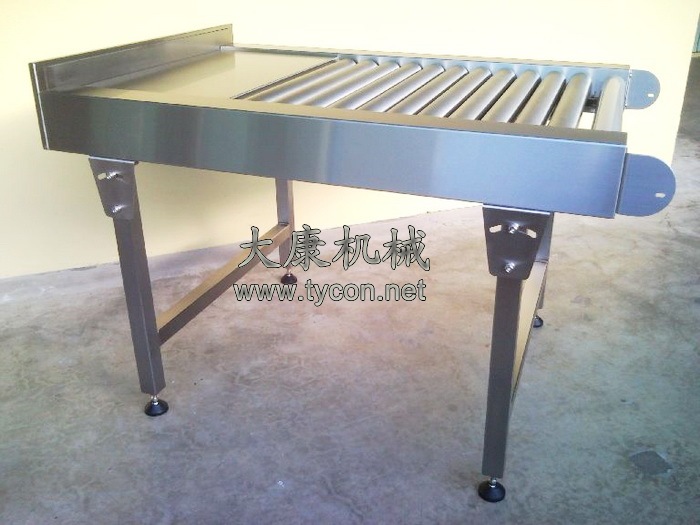

stainless model
