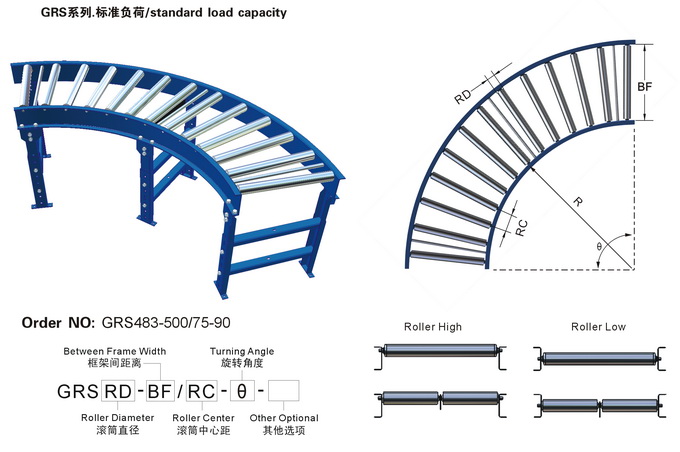

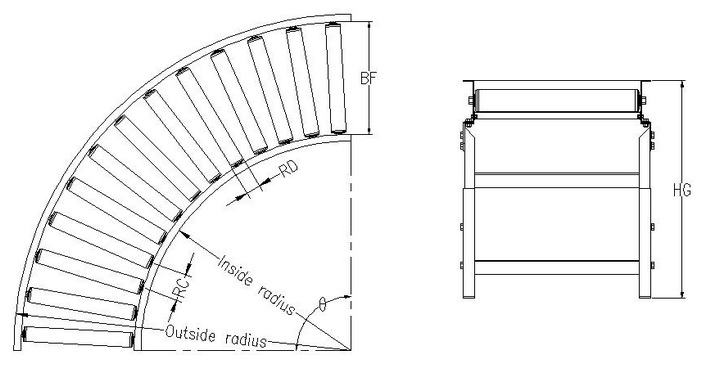

Model 型号	Roller/滚筒				RC	BF	θ
	RD	Wall 壁厚(mm)	Bearing轴承	Capacity承载(Kg)	Inside Roller Center 内侧滚筒中心距 (mm)	Between Frame Width 框架间距离(mm)	Turning Angle 旋转角度(degree)
	Dia. 直径(mm)
GRS350	35	1.2	HM325	58	50	150,250,350	45,90,180
GRS380	38	1.2	HB350	70	50	200,300,500
GRS400	40	1.2	FA381	100	75,100	300,500,750
GRS483	48.3	1.65	HM450	126	75,100	500,750,950
GRS500	50	1.5	HM475	150	75,100	500,750,950
GRS600	60	2	HB560	280	100,125	500,750,950
GRS635	63.5	3	FM577	315	100,125	750, 1000,1250
GRS700	70	2.9	HP643	380	100,125	750,1000,1250
GRS760	76	6	SM576	450	100,125	750,1000,1250
GRS890	89	6	SM780	500	100,125	950,1200,1450

1) Standard

     Roller --- carbon steel, zinc plated, double spring

     Frame --- carbon steel, powder coated

2) Optional

     Roller --- stainless, aluminum, PVC; galvanized, rubber coated

     Frame --- stainless, aluminum, galvanized

Customized Model Available

standard model



double Rows Roller model

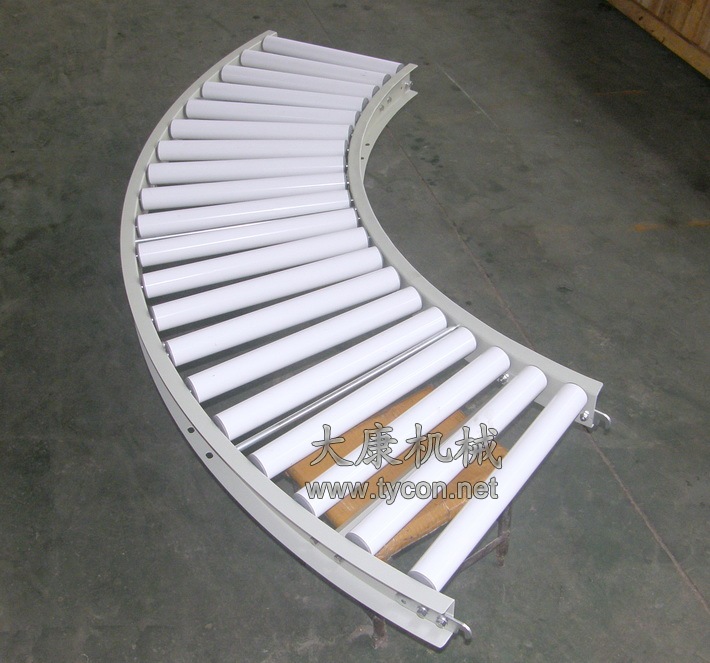

PVC roller model
