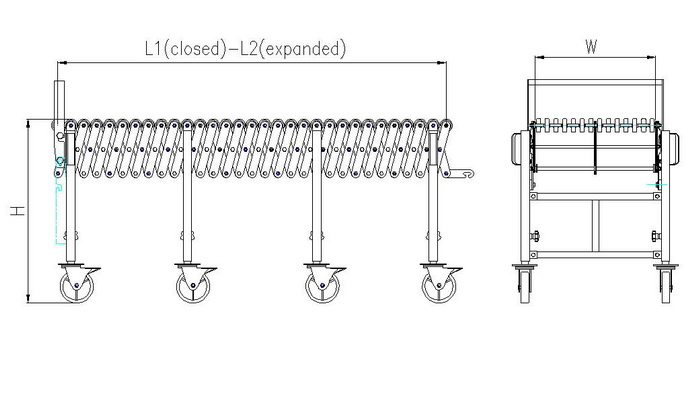

 1) L1:L2=1:4
2) 49mm wheel diameter, nylon wheel
3) flat steel with powder coated or ribbed aluminum alloy side plate
4) square tube support leg, all caster with brake ※ for more detail information, please refer to the catalogue
Standard:
width: 460mm(7 wheels per axle), 610mm(9 wheels per axle), 760mm(11 wheels per axle)
height: 0.7m to 1m adjustable
length: closed=1m, expanded=4m
capacity: 25kg/0.3m
Customized Model Available
black color

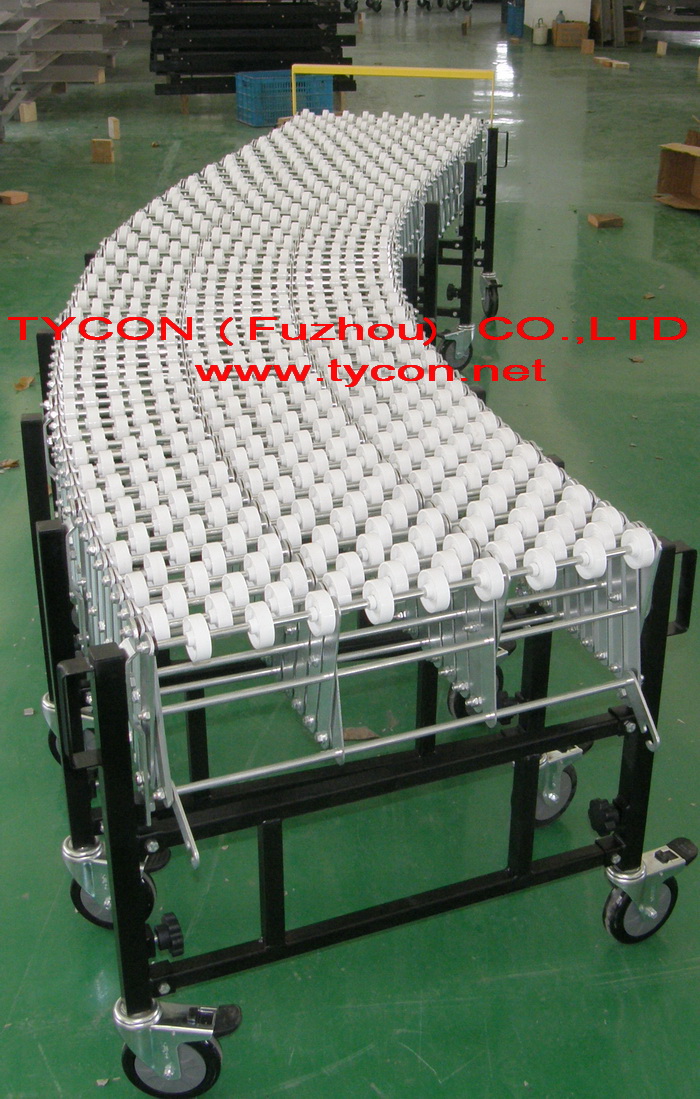

white color
new support legs structure
|
